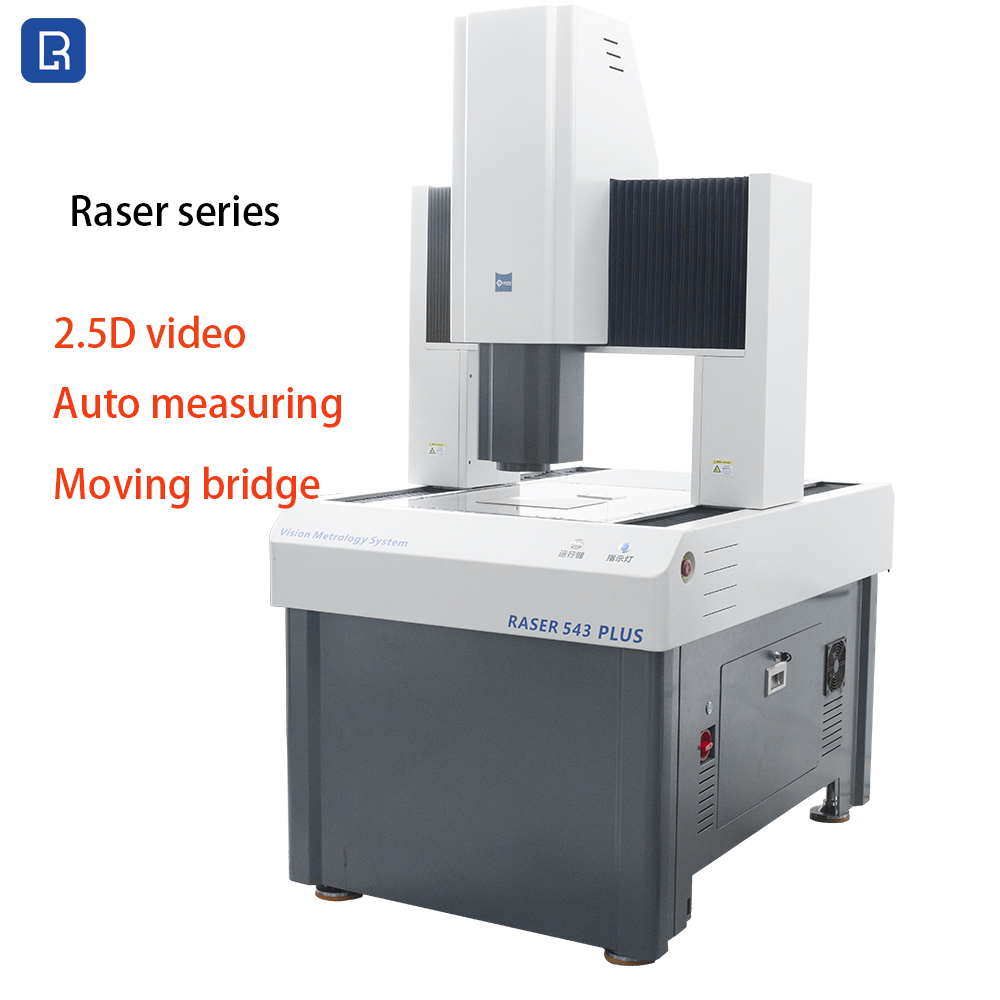

The Raser series is fully automatic image measuring instruments with abundant measurement functions and international brand quality. High precision and stable performance.
It is the best choice for precision manufacturing quality assurance which perfectly combines the three core system technologies of motion control system, optical control system and software measurement system.
It is the best choice for precision manufacturing quality assurance which perfectly combines the three core system technologies of motion control system, optical control system and software measurement system.
库存： 0
Inquire
Add to Basket
Function
Measuring the dimensions of product’s shape structure.
Principle
It uses optical magnification imaging to digitize the image of objects observed optically. Combined with the measurement software, the geometric dimensions of the object are measured and drawn, and the data can be tabulated and post-processed
Usage
Suitable for the inspection of spare parts of mobile phones, computers and peripherals, camera modules, optoelectronics and solar energy, PCB & FPC, semiconductors, medical, aerospace, automotive / locomotive, display and touch panels, precision molds, rubber, stamping, automation and other in related industries.
Mechanical structure
Mobile bridge , Precision measuring platform
Equipment features
Precision automatic measurement and CNC full closed-loop control system is adopted to ensure the precision and stability of measurement.
The Mobile bridge structure is equipped with a linear motor to ensure high efficiency.
A variety of specifications of light sources can be flexibly combined with control to meet the measurement of lighting effects.
Auto-zoom optical lenses can achieve automatic zoom measurement.
Fast focusing within 2 seconds greatly improves measurement efficiency.
Rapid screening, retesting and systematic analysis of measurement results.
Products can be quickly positioned with image navigation.
Contact probes and spectral confocal sensors can be added to realize compound measurements.
The software is easy to operate and learn, and the display interface can be customized according to requirements.
| Equipment Parameters | ||||||||
| Basic parameters | Model | Raser Q 452 | ||||||
| Size | 910*1300*1825mm | |||||||
| Measuring range（X*Y*Z） | 400*500*200mm | |||||||
| Model | Ex,y | Exy | Ez | |||||
| ≤±(2.0+L/300)um | ≤±(2.5+L/300)um | ≤±(3.0+L/150)um | ||||||
| * The accuracy of the equipment can be guaranteed under the conditions of the environment in which the equipment is used * L represents the measured length, in millimeters * The mechanical accuracy of Z-axis and the accuracy of focusing have a lot to do with the surface of the workpiece (focusing time is about 2 seconds) | ||||||||
| Repeatability | X,Y≤2.0um Z≤3.0um | |||||||
| Maximum operating speed | X,Y | Z | ||||||
| 350mm/s | 200mm/s | |||||||
| Maximum acceleration | 1000mm/s2 | 600mm/s2 | ||||||
| Machine load-bearing | 30kg | |||||||
| Machine weight | 800kg | |||||||
| Optical system | Camera | 1.3 million high-resolution industrial cameras | ||||||
| Lens | 8.3：1automatic zoom lens | |||||||
| Focal diatsnce/depth of field | 82mm/0.25mm | |||||||
| Magnification | Optical ejection magnification | Image zoom | ||||||
| 0.6～5.0X | 35X~290X | |||||||
| Light source lighting system | coaxial light (white LED cold light source), rim light (white LED cold light source) ,ring light (white LED cold light 3 ring 8 areas) | |||||||
| Motion system | Grating ruler | Austria 0.1μm high-resolution metal grating | ||||||
| Motor | X-axis | Y-axis | Z-axis | |||||
| Linear servo motor | Linear servo motor | AC servo motor | ||||||
| Lead rail | Three-axis precision linear slides | |||||||
| Software measurement system | Software system | Smart Vision Inspector | ||||||
| PC configuration | HP_ Computer 288ProG9MT/NewCorei5-12500 (3.0G/6 cores)/16G/512 SSD/ No optical drive/wired keyboard and mouse, keyboard /HP_ Display_V24IE G5(24 inches)(The actual configuration is subject to the factory, not lower than the above configuration) | |||||||
| Optional | □Spectral confocal sensors □contact sensors □lifting &lowering light source □Smart Fitting PRO profile software □Line sweep laser sensor □Rotating quad | |||||||
| Unit view |  | ||
| Main view | Side view | ||
ONE-STOP MEASUREMENT SOLUTION
Aerospace ManufacturingIndustry Measurement Solutions
In the aerospace industry, components often have highcomplexity and precisionrequirements, requiringextensive dimensionalmeasurements. Traditionameasurement methods canbe time-consuming andlabor-intensive, and often prone to errors, failing todeliver high-precision results. Opticalimagemeasurement instruments offer advantages such ashigh precision, highefficiency,andnon-destructiveness, enablingrapidandaccuratedimensionalmeasurements.
Electronics IndustryMeasurement Solutions
The electronicsindustry demands precisionmeasurement and inspection across a wide range ofproducts.Due to the small size of components, complexinternal structures, and characteristics suchas being thin, light, and easily deformable, measuringelectronic products requires the flexible application ofvarious sensors. NANO Metrology's applicationsolutions cover all segments within the electronicsindustry, providing customized solutions for specificneeds.
Automotive ManufacturingIndustry Measurement Solutions
From traditional vehicles to new energy vehicles, frompowertrains and automotive parts to vehicle bodies andsubassemblies, measurement equipment can be usedfor rapid measurements at different locations. The datais transmitted in real time to the laboratory datamanagement system, enablingautomatic productdimension detection and recognition. This helpsautomotive manufacturers improve production efficiency, reduce costs, and enhance product quality and safety.
