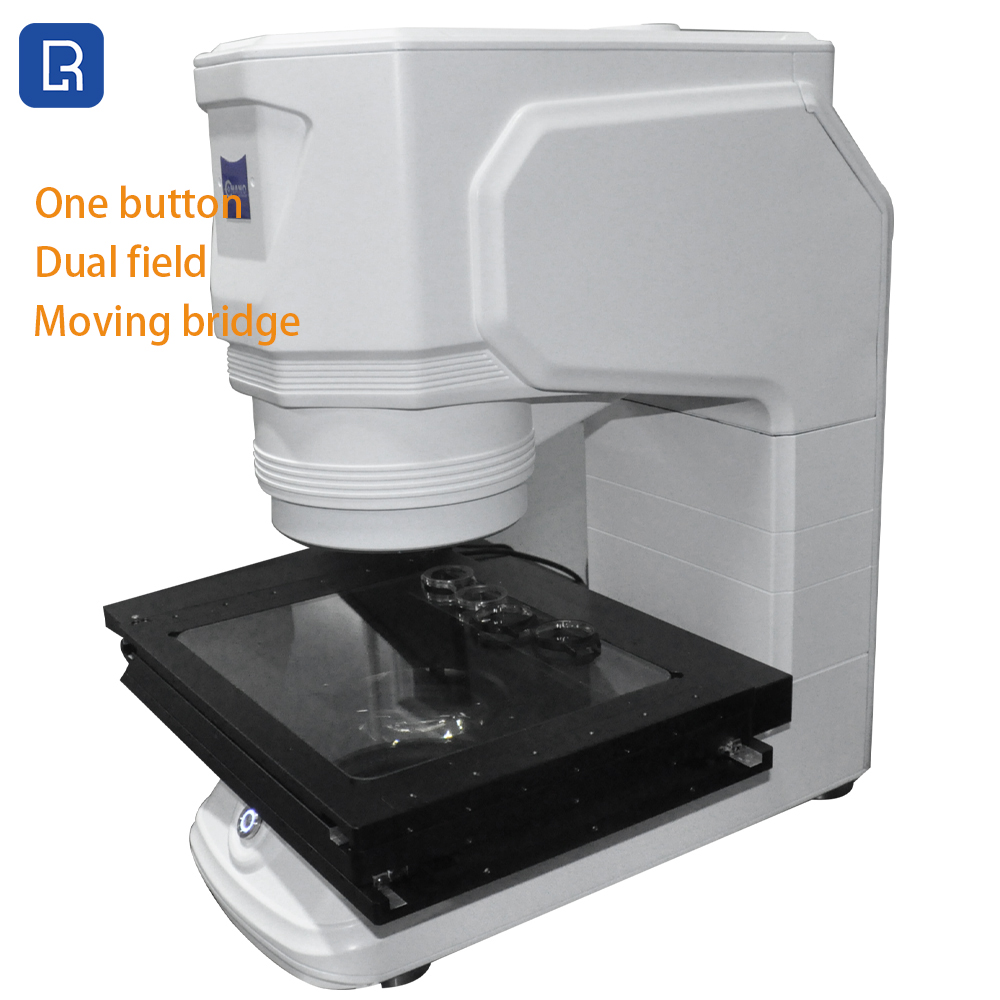

The Flash series flash measurement instrument features an ultra-large detection field of view and a high-resolution dual telecentric design, making it ideal for one-click precise measurement of individual or batch objects. With an ultra-low distortion design and precise telecentricity adjustment, it offers a large depth of field, ensuring consistent measurement results at any working distance within the depth of field. Paired with one-click intelligent measurement software, it automatically determines features, enabling automatic product positioning and one-click rapid measurement. It is equipped with dual start switches of light sensing and keyboard, which can quickly sense the placement of products and automatically start the measurement program with one click.
库存： 0
Inquire
Add to Basket
Function:
Measure the shape and structure dimensions of products.
Principle:
Utilize optical magnification imaging to digitize the image of the object observed under the optical system. Combine with measurement software to measure the geometric dimensions of the object and draw diagrams. It can also tabulate the data and perform post-processing.
Application:
Suitable for the inspection of components in industries such as mobile phones, computers and peripherals, camera modules, optoelectronics and solar energy, PCB & FPC, semiconductors, medical, aerospace, automotive/motorcycles, display screens and touch panels, precision molds, rubber, stamping, automation and peripherals.
Machine structure:
Vertical precision measurement platform.
Instrument Features:
A megapixel camera combined with high-resolution double telecentric lenses ensures measurement accuracy at the micrometer level.
Multiple specifications of light sources can be flexibly combined and controlled to guarantee optimal lighting effects.
Simple operation: products do not need to be placed upright; they can be randomly positioned for measurement.
Single or batch products within the field of view can be measured within seconds, achieving extremely high measurement efficiency.
The software is easy to operate and learn, allowing users to quickly master correct measurement.
Measurement can be completed with just one click.
| Equipment Parameters | ||||||||
| Basic parameters | Model | Flash-2020D | ||||||
| Size | 388*535*633mm | |||||||
| Range of measurement | Wide visual field | |||||||
| High precision field of view | ||||||||
| Platform lifting | 72mm | |||||||
| Measuring range | Wide visual field | 82x55mm | ||||||
| High precision field of view | 30x20mm | |||||||
| Measurement accuracy | Splice | Wide visual field | ±3μm | |||||
| High precision field of view | ±2μm | |||||||
| Spliceless | Wide visual field | ±(5+0.02L) μm | ||||||
| High precision field of view | ±(3+0.02L) μm | |||||||
| Repeatability | Splice | Wide visual field | ±1μm | |||||
| High precision field of view | ±0.5μm | |||||||
| Spliceless | Wide visual field | ±2μm | ||||||
| High precision field of view | ±1.5μm | |||||||
| Machine load-bearing | 3kg | |||||||
| Machine weight | 55kg | |||||||
| Optical system | Camera | 20 million high-resolution industrial cameras | ||||||
| Lens | High precision double magnification double telecentric lens | |||||||
| Focal diatsnce/depth of field | 145mm/10mm | |||||||
| Light source lighting system | Telecentric parallel base light source (green)Surface light (white LED light source)Coaxial surface light (optional) | |||||||
| Software measurement system | Software system | Smart Vision Inspector | ||||||
| PC configuration | Dell 7010MT plus/ intel i5/16G/512 SSD/ No optical drive/Wired keyboard/Dell_Display_V24IE G5(24 inches) (The actual configuration is subject to the factory, not lower than the above configuration) | |||||||
| Unit view |  | ||
| Main view | Side view | ||
ONE-STOP MEASUREMENT SOLUTION
Aerospace ManufacturingIndustry Measurement Solutions
In the aerospace industry, components often have highcomplexity and precisionrequirements, requiringextensive dimensionalmeasurements. Traditionameasurement methods canbe time-consuming andlabor-intensive, and often prone to errors, failing todeliver high-precision results. Opticalimagemeasurement instruments offer advantages such ashigh precision, highefficiency,andnon-destructiveness, enablingrapidandaccuratedimensionalmeasurements.
Electronics IndustryMeasurement Solutions
The electronicsindustry demands precisionmeasurement and inspection across a wide range ofproducts.Due to the small size of components, complexinternal structures, and characteristics suchas being thin, light, and easily deformable, measuringelectronic products requires the flexible application ofvarious sensors. NANO Metrology's applicationsolutions cover all segments within the electronicsindustry, providing customized solutions for specificneeds.
Automotive ManufacturingIndustry Measurement Solutions
From traditional vehicles to new energy vehicles, frompowertrains and automotive parts to vehicle bodies andsubassemblies, measurement equipment can be usedfor rapid measurements at different locations. The datais transmitted in real time to the laboratory datamanagement system, enablingautomatic productdimension detection and recognition. This helpsautomotive manufacturers improve production efficiency, reduce costs, and enhance product quality and safety.
