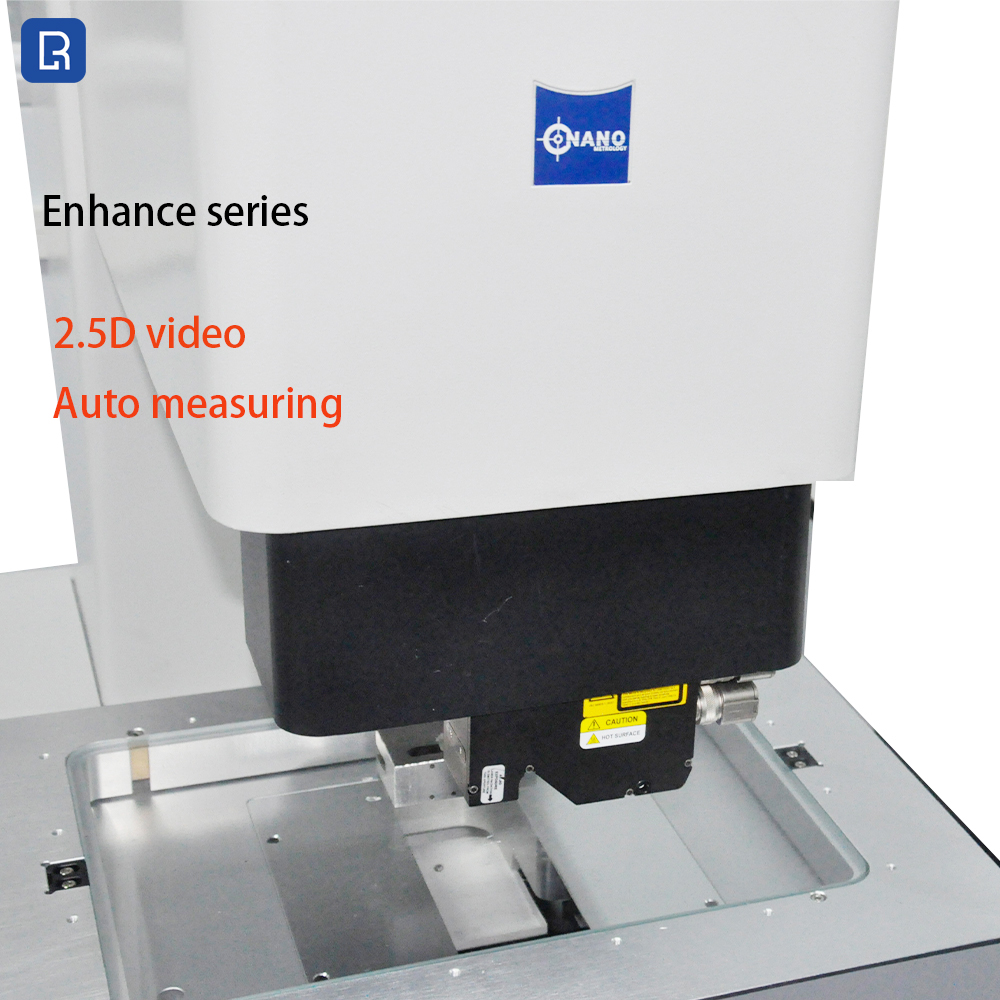

The Enhance series is Optical image measuring instrument condenses motion system, control system, optical system, software system, four major areas of technology perfect combination with international brand performance quality of automatic image measuring instrument. Optical magnification imaging is used to digitize the image of the object observed under the optics, combine the control software into the geometric dimension measurement and drawing of the object, and can form the data and perform post-processing. Suitable for mechanical, electronic, electrical, mold and precision hardware testing and design development.
库存： 0
Inquire
Add to Basket
Function
Measuring the dimensions of product’s shape structure.
Principle
It uses optical magnification imaging to digitize the image of objects observed optically. Combined with the measurement software, the geometric dimensions of the object are measured and drawn, and the data can be tabulated and post-processed.
Usage
Suitable for the inspection of spare parts of mobile phones, computers and peripherals, camera modules, optoelectronics and solar energy, PCB & FPC, semiconductors, medical, aerospace, automotive / locomotive, display and touch panels, precision molds, rubber, stamping, automation and other in related industries.
Mechanical structure
Gooseneck structure, Precision measuring platform.
Equipment features
precision automatic measurement, CNC full closed-loop control, to ensure accuracy and stability;
High resolution industrial camera to ensure high quality measurement picture;
A variety of specifications of light source flexible collocation control, to ensure the lighting effect;
Automatic magnifying optical lens, can realize automatic magnifying measurement;
The quick focus of the lens within 2 seconds greatly improves the measurement efficiency;
Rapid selection, retest and system analysis of measurement results;
Adopts patch grating with resolution of 0.5um;
Can be equipped with contact probe and spectral confocal sensor to realize composite measurement;
The software is convenient to operate and easy to learn, and the display interface can be customized.
| Equipment Parameters | ||||||||
| Basic parameters | Model | Enhance Pro 322 | ||||||
| Size (L * W * H) | 640*820*1628 mm | |||||||
| Measuring range（X*Y*Z） | 300*200*200 mm | |||||||
| Measurement accuracy | Ex,y | Exy | Ez | |||||
| ≤±(1.7+L/200)um | ≤±(2.2+L/200)um | ≤±(3.0+L/150)um | ||||||
| * The accuracy of the equipment can be guaranteed under the conditions of the environment in which the equipment is used * L represents the measured length, in millimeters * The mechanical accuracy of Z-axis and the accuracy of focusing have a lot to do with the surface of the workpiece (focusing time is about 2 seconds) | ||||||||
| Repeatability | X,Y≤1.7um ， Z≤3.0um | |||||||
| Maximum operating speed | X,Y | Z | ||||||
| 300mm/s | 200mm/s | |||||||
| Maximum acceleration | 800mm/s2 | 500mm/s2 | ||||||
| Machine load-bearing | 20kg | |||||||
| Machine weight | 570 kg | |||||||
| Optical system | Camera | High-resolution industrial camera | ||||||
| Lens | 8.3：1 Automatic zoom lens | |||||||
| Focal diatsnce/Depth of field | 82mm/0.25mm | |||||||
| Magnification | Optical ejection magnification | Image zoom | ||||||
| 0.6～5.0X | 35X~290X | |||||||
| Light source lighting system | coaxial light (white LED cold light source), rim light (white LED cold light source) ,ring light (white LED cold light 3 ring 8 areas) | |||||||
| Motion system | Grating ruler | 0.5μm high-resolution metal grating | ||||||
| Motor | X-axis | Y-axis | Z-axis | |||||
| DC servo motor | DC servo motor | AC servo motor | ||||||
| Lead rail | Three-axis precision slides | |||||||
| Software measurement system | Software system | Smart Inspector Pro | ||||||
| PC configuration | HP_ Computer 288ProG9MT/NewCorei5-12500 (3.0G/6 cores)/16G/512 SSD/ No optical drive/wired keyboard and mouse, keyboard /HP_ Display_V24IE G5(24 inches)(The actual configuration is subject to the factory, not lower than the above configuration) | |||||||
| Optional | □Spectral confocal sensors □contact sensors □lifting &lowering light source □Smart Fitting PRO profile software □Line sweep laser sensor | |||||||
| Unit view |  | ||
| Main view | Side view | ||
ONE-STOP MEASUREMENT SOLUTION
Aerospace ManufacturingIndustry Measurement Solutions
In the aerospace industry, components often have highcomplexity and precisionrequirements, requiringextensive dimensionalmeasurements. Traditionameasurement methods canbe time-consuming andlabor-intensive, and often prone to errors, failing todeliver high-precision results. Opticalimagemeasurement instruments offer advantages such ashigh precision, highefficiency,andnon-destructiveness, enablingrapidandaccuratedimensionalmeasurements.
Electronics IndustryMeasurement Solutions
The electronicsindustry demands precisionmeasurement and inspection across a wide range ofproducts.Due to the small size of components, complexinternal structures, and characteristics suchas being thin, light, and easily deformable, measuringelectronic products requires the flexible application ofvarious sensors. NANO Metrology's applicationsolutions cover all segments within the electronicsindustry, providing customized solutions for specificneeds.
Automotive ManufacturingIndustry Measurement Solutions
From traditional vehicles to new energy vehicles, frompowertrains and automotive parts to vehicle bodies andsubassemblies, measurement equipment can be usedfor rapid measurements at different locations. The datais transmitted in real time to the laboratory datamanagement system, enablingautomatic productdimension detection and recognition. This helpsautomotive manufacturers improve production efficiency, reduce costs, and enhance product quality and safety.
